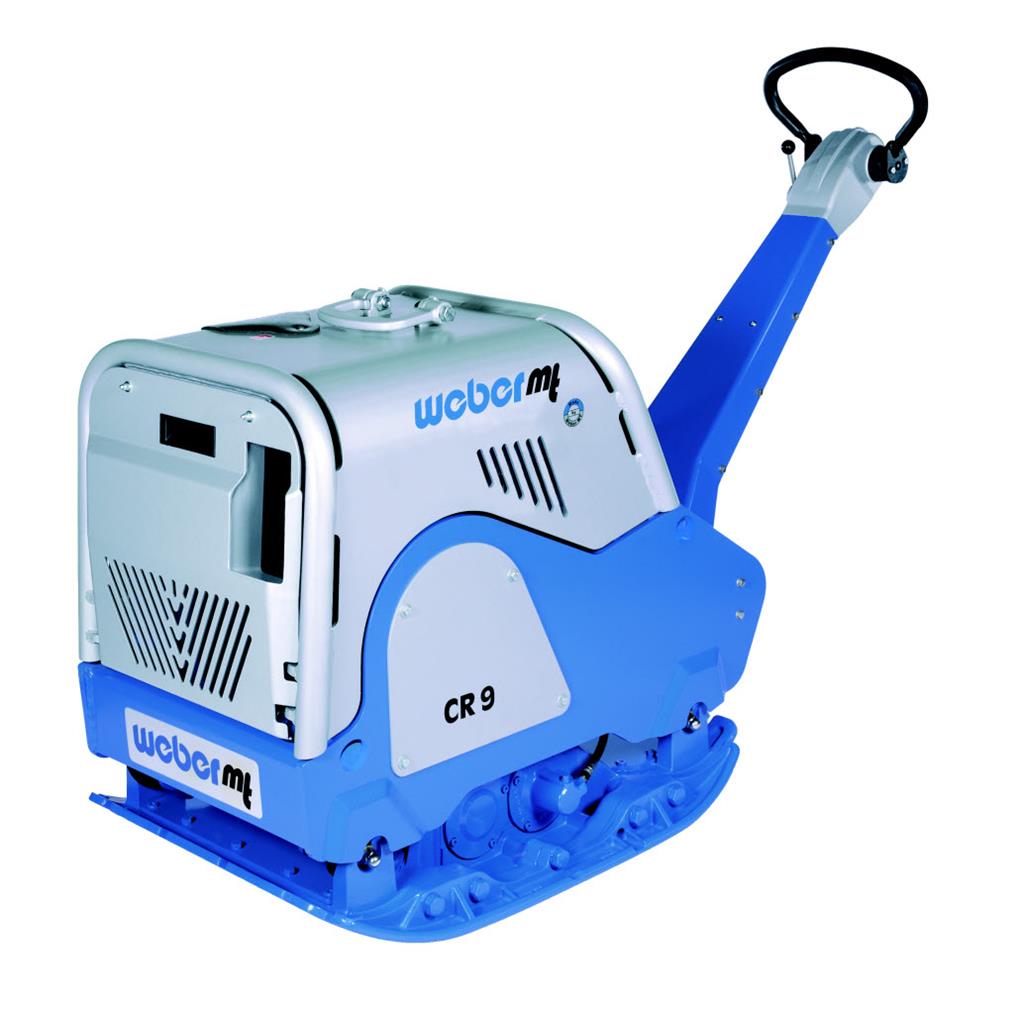

Sentrifugalkraft: 100 kN   -   Arbeidsbredde: 75 cm   -   Vekt: 744kg

Kraftig - Ergonomisk - Pålitelig

Bruksområdet for CR 9 er klassisk massekomprimering. Dens balanserte driftskarakteristikk, lave hånd-arm vibrasjoner og den ergonomisk utformede styrestangen gjør at du kan jobbe uten å bli sliten og garantere en høy grad av brukerkomfort.

CR 9 CCD er utstyrt med det nye COMPATROL® komprimeringsstyringssystemet, og gir dermed den ekstra fordelen av kontinuerlig komprimeringskontroll og kvalitetssikring av komprimeringsarbeidet som utføres.

• Trinnløs variabel, elektrohydraulisk tippkontroll.
• Presis, pålitelig og praktisk bytte mellom forover og revers kjøring
• Høydejusterbar og lav vibrasjons styrestang.
• Lavere strømtap takket være kraftoverføring med V-belt.
• Fullstendig beskyttet motor takket være beskyttelsesrammen og motorhuset.
• Uhindret tilgang til alle vedlikeholdspunkter (vedlikeholdsdeksel på forsiden).
• Selvjusterende sentrifugalkobling.
• Elektrisk start med timemåler.

Stage V motor fra Hatz som oppfyller morgendagens krav til utslipp




CR 9 -  Hand-Arm-Vibrations < 2,5 m/s²



Tilgjengelige tilleggsutstyr:

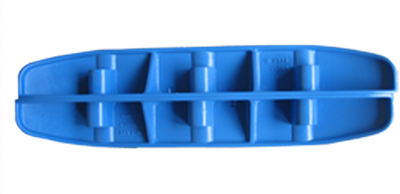

Utviderplater

Video Compatrol
Link til brosjyre

MDM engine protection

The soil compactors CR 6, CR 7, CR 8 and CR 9 with MDM engine protection and COMPATROL^® 2.0
offer extensive safety precautions. In case of low engine oil pressure, high engine temperature or
heavily soiled air filter, the Hatz diesel engine switches off automatically. If an error occurs, it is signaled
by a LED indicator to the operator. Engine damages caused by inadequate maintenance, belong to the
past.
Life time and operational reliability of the engine are significantly extended.

The green LED indicates that the soil compactor is ready for use.

___________________________________________________________________________________________

Error message: Engine oil pressure is too low! The engine will be switched off immediately.

___________________________________________________________________________________________

Error message: Battery is not charging!

___________________________________________________________________________________________

Error message: Engine temperature too high! Shutdown 3 minutes after the LED has flashed.

___________________________________________________________________________________________

Error message: Air filter very dirty! Shutdown 10 minutes after the LED has flashed.

___________________________________________________________________________________________

Display before next maintenance time.
10 hours before the maintenance time has been reached (first maintenance at 150 operating hours), the LED flashes.
The service date will be displayed for 5 seconds, then switches over to hour meter.
After engine start only the operating hours are displayed.

Further information:

• Switch off the machine on the ignition lock.

• Resetting the maintenance time using a magnet.

• MDM display can be changed (e.g. by external damage).

• Ignition lock can be changed easily.

COMPATROL^®

COMPATROL^® is based on a frequency band analysis and consists of a display (CCD Compaction Control Display) and an accelerometer.
COMPATROL^® measures the acceleration increase or decrease of the base plate, compares the measuring with the soil conditions registered by the system and convert it to “electrical voltage”. The result is easily shown in the display:
If the number of flashing diodes does not increase, it indicates to the operator that the maximum compaction has been achieved on that soil with this machine.

COMPATROL^® 2.0 – the extension of the compaction control to the active motor protection MDM applies to the soil compactor of the series CR 6 to CR 9.

COMPATROL^® is not replacement for conventional testing methods, but provides you an useful addition to the quality assurance.

Automatic function check of the machine.


Automatic  frequency check of the machine.
(Green LED flashes until optimum frequency
is reached).



Operation (after 5-10 seconds)

Modell	Type	Pakkekraft	Frekvens	Arbeidsbredde	Triaksiale vibr	Max brukstid i timer	Vekt	Motor	Drivstoff
Weber CF 1 Hd	Vibroplate	10 kN	95 Hz	35 cm	3,8	3,5	60 kg	Honda 3,3 hk	Bensin
Weber CF 2 Hd	Vibroplate	15 kN	95 Hz	45 cm	2,4	8,68	83 kg	Honda 4,9 hk	Bensin
Weber CF 3 Hd	Vibroplate	20 kN	95 Hz	50 cm	3,1	5,2	96kg	Honda 4,9 hk	Bensin
Weber CR 1 Hd	Reversibel vibroplate	15 kN	100 Hz	35 cm	1,5	22	92 kg	Honda 3,3 hk	Bensin
Weber CR 2 Hd	Reversibel vibroplate	25 kN	100 Hz	45 cm	3,6	3,86	143 kg	Honda 4,9 hk	Bensin
Weber CR 3 Hd	Reversibel vibroplate	35 kN	80 Hz	50 cm	2,4	8,68	203 kg	Honda 8,2 hk	Bensin
Weber CR 5 E	Reversibel vibroplate	42 kN	77 Hz	55 cm	2,4	8,68	311 kg	Hatz 7,4 hk	Diesel
Weber CR 6  CCD 2.0	Reversibel vibroplate	55 kN	72 Hz	59 cm	2,4	8,68	414 kg	Hatz 10,3 hk	Diesel
Weber CR 7	Reversibel vibroplate	65 kN	74 Hz	65 cm	2,1	11,34	475 kg	Hatz 10,3 hk	Diesel
Weber CR 7 MDM	Reversibel vibroplate	65 kN	74 Hz	65 cm	2,1	11,34	477 kg	Hatz 10,3 hk	Diesel
Weber CR 7 CCD 2.0	Reversibel vibroplate	65 kN	74 Hz	65 cm	2,1	11,34	477 kg	Hatz 10,3 hk	Diesel
Weber CR 8 CCD 2.0	Reversibel vibroplate	75 kN	67 Hz	70 cm	1,8	15,43	605 kg	Hatz 14,1 hk	Diesel
Weber CR 9 CCD 2.0	Reversibel vibroplate	100 kN	65 Hz	75 cm	2,4	8,68	740 kg	Hatz 15,3 hk	Diesel
SRV 590	Stamper	18,3 kN		28 cm	6,5	1,18	62 kg	Honda 3,7 hk	Bensin
Weber CFR 90	Vibroplate rund	14 kN	85 Hz	43 cm	3,1	5,20	90 kg	Honda 4,9 hk	Bensin
CF 2 DC	Vibroplate	15 kN	95 Hz	45 cm	2,4	8,68	81 kg	Honda 1,8 hk	Elektrisk
SRE 590 DC	Vibrostamper	17,5 kN		28 cm			62 kg	Honda 1,8 hk	Elektrisk
CFR 90 DC	Vibroplate rund	14 kN	95 Hz	43 cm	2,4	8,68	90 kg	Honda 1,8 hk	Elektrisk
CR 2 DC	Reversibel vibroplate	20 kN	100 Hz	45 cm			136 kg	Honda 1,8 hk	Elektrisk
